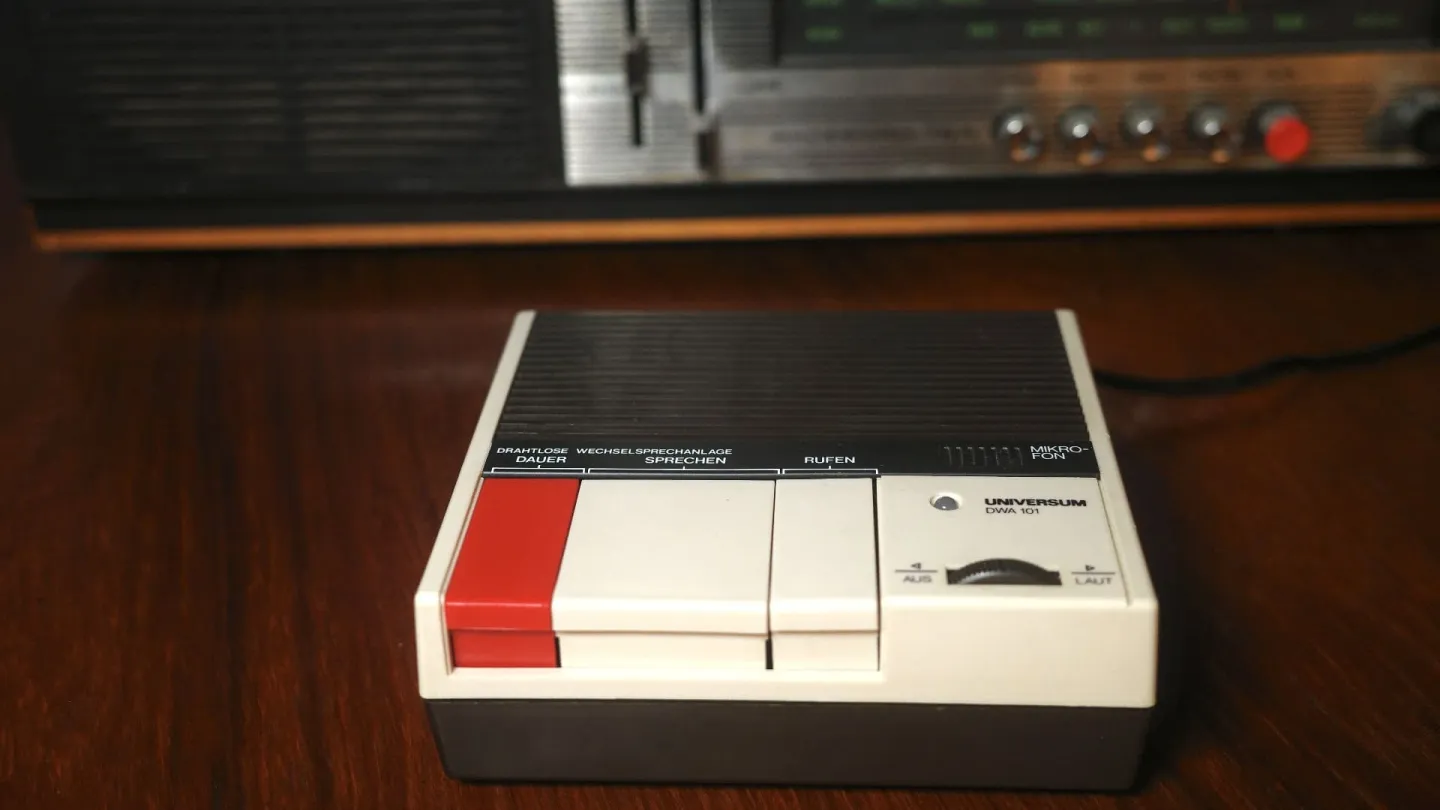

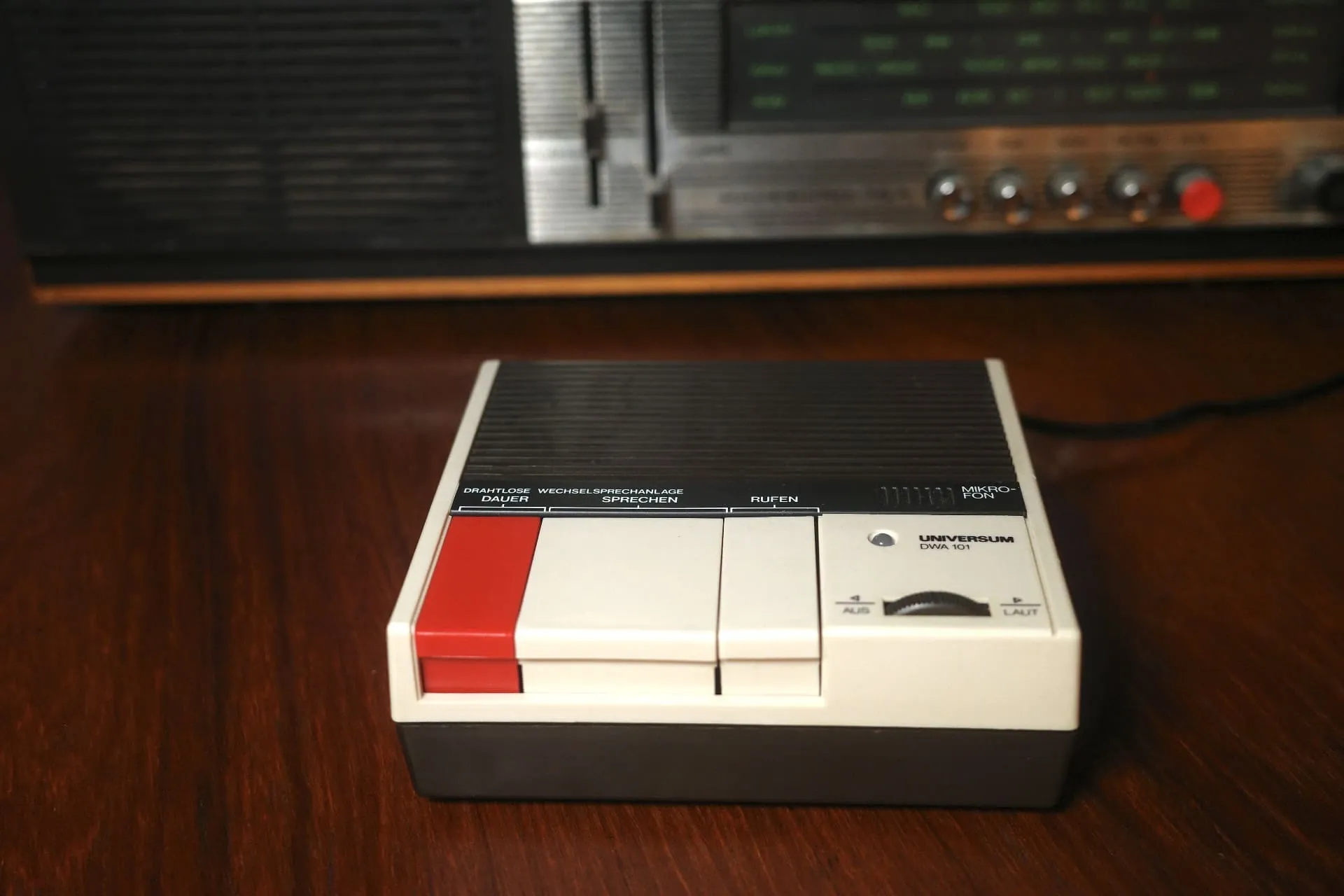

The Universum DWA 101 cost fifteen euros and arrived smelling like a cupboard. It had three buttons, one red LED and a speaker that was never designed to be driven by anything with a computer in it. That turned out to be the whole project.

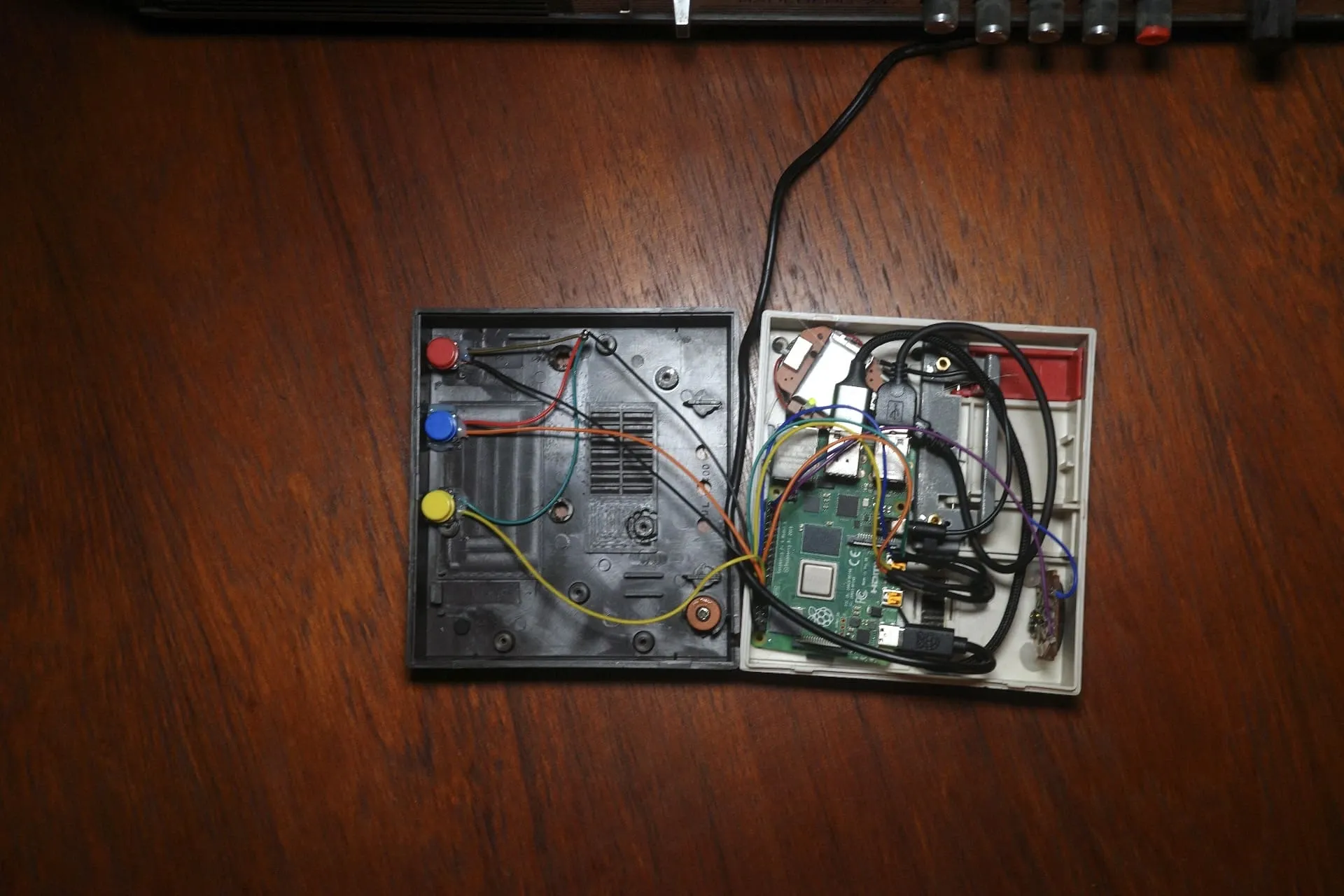

What went in
Nothing exotic, which was the point. Everything below was either already on the bench or cost less than a takeaway.
- A Raspberry Pi 4, the one that was doing nothing
- A USB microphone, taped inside the case
- The original speaker, eventually driven by an actual amplifier
- Three push buttons glued under the original keys
- One RGB LED where the red one used to be
The first version drove the speaker straight off a GPIO pin. It made a sound like a wasp in a tin and then it made no sound at all.
Four modes, none of them useful
The buttons pick a personality. Depressed, supporter, critic — and a debate mode where the last two argue with each other about whatever you say into the microphone and never resolve anything.
The LED colour tells you which one is currently talking, which matters more than it sounds when you have walked out of the room and left them going.
MODES = {
"depressed": (0, 0, 255),
"supporter": (0, 255, 0),
"critic": (255, 0, 0),
"debate": (255, 0, 255),
}What I would do differently
Buy the amplifier first. Print the mounting bracket last, once you know how much space the wiring actually needs. And label the cables, which I say every time.
